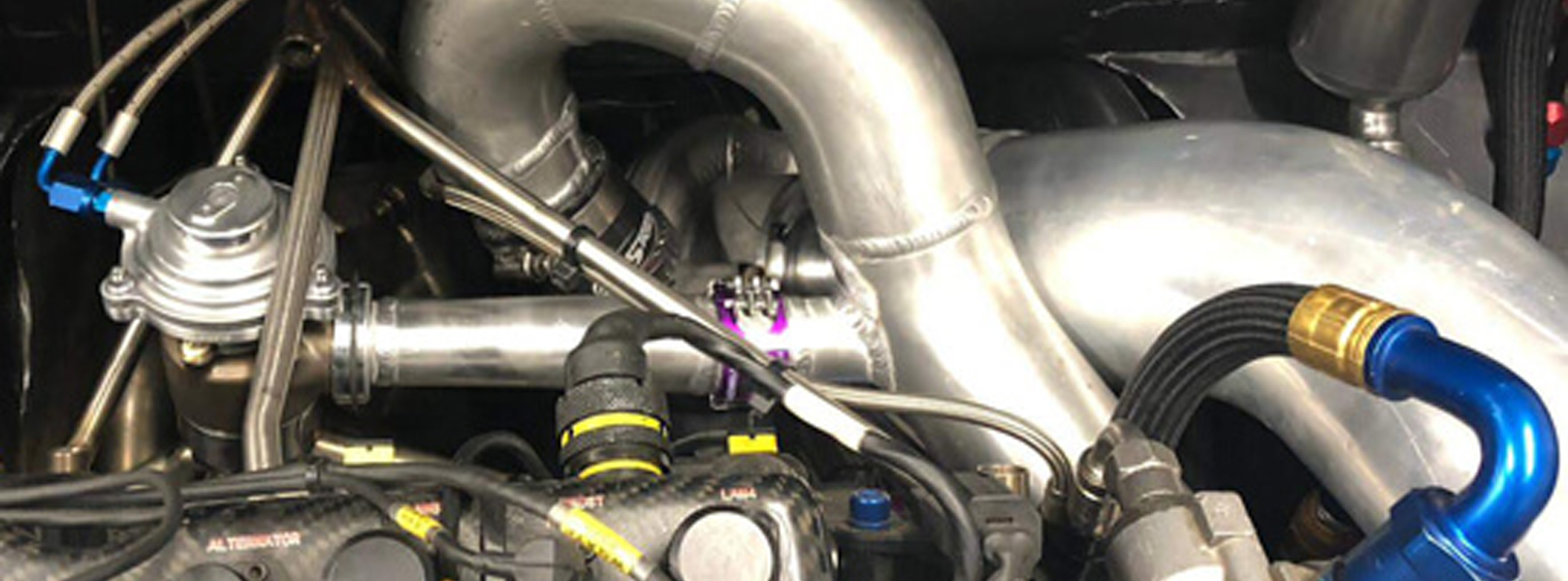

Wastegate Maintenance
A wastegate often doesn't receive the attention it deserves. That's probably why so many performance cars develop boost problems that could have been avoided with half an hour in the workshop.
Most owners focus on the turbocharger itself, a bigger compressor. Better intercooler. New injectors. The wastegate is often forgotten until boost starts creeping, the car struggles to hold pressure, or an overboost fault appears. By then, the problem has usually been there for a while.
At DSPS, we come across it time and time again - A customer books in expecting a calibration issue yet the ECU is doing exactly what it should. The real culprit is mechanical. A sticking wastegate or a tired actuator can make even the best ECU calibration look inconsistent which is why every performance setup should be treated as a complete system rather than a collection of upgrades.
Valve seat wear
The valve and seat live in one of the hottest areas of the entire engine.
Thousands of heat cycles gradually wear both surfaces. As that happens, the valve may no longer seal as cleanly as it once did. Exhaust gases begin escaping earlier than intended, slowing spool and making boost control harder to predict.
It's rarely dramatic overnight. More often than not, drivers notice the car doesn't quite feel as sharp as it used to.
Whenever the turbo is removed, inspect the seating surface carefully. Light marking is normal. Deep pitting, cracking or uneven contact isn't.
Diaphragm and spring fatigue
Inside a pneumatic actuator sits a surprisingly hard-working diaphragm and spring.
Every acceleration run, every gear change and every heat cycle asks those components to do their job again.
A weakened spring may begin opening earlier than intended, while an ageing diaphragm can leak pressure long before it fails. The result is an inconsistent boost that is often blamed on the ECU.
We've seen cars arrive after owners have spent hours chasing down maps, only for a replacement actuator to solve the issue within minutes.
Check for shaft movement.
The wastegate arm on an internal wastegate should move freely - Carbon deposits, corrosion and heat distortion gradually increase resistance. Sometimes the movement feels acceptable by hand until the components reach operating temperature.
If you find any stiffness it should be investigated. If the arm sticks slightly, boost control becomes inconsistent because the ECU cannot position the valve accurately. Modern calibrations rely on repeatable mechanical movement. Without it, the software is constantly trying to compensate.
Carbon build-up
Carbon is unavoidable - The question is how much has accumulated.
Road cars used for short journeys can suffer just as much as dedicated track cars because repeated heat cycling allows deposits to build around the valve and shaft. Over time, those deposits restrict movement and prevent the valve from closing consistently.
Cleaning should always be carried out carefully. The aim is to remove contamination without damaging sealing surfaces or introducing abrasive material into the turbocharger.
A quick clean during routine servicing is often enough to prevent a much larger repair later. Don't overlook the control system.
The wastegate itself isn't always the fault.
Vacuum hoses perish. Boost reference lines split. Solenoids become contaminated with oil vapour. Electrical connectors loosen after years of vibration.
All of those issues produce symptoms that are remarkably similar to those of a mechanical wastegate failure.
That's why diagnostics should always begin with the entire boost control system rather than replacing parts unnecessarily.
A practical inspection routine
Whether you're preparing for a race weekend or maintaining a fast road car, a simple inspection goes a long way.
Before tuning or competition you should check the following:
- Wastegate valve condition
- Valve seat for pitting or cracks
- Shaft movement through its full travel
- Actuator diaphragm for leaks
- Spring pressure, if applicable
- Vacuum and boost reference hoses
- Electrical boost control solenoids
- Signs of excessive carbon deposits
- Exhaust leaks around the manifold and turbo
- Fasteners and locking hardware
It doesn't take long, but it can prevent hours of fault-finding later.
Why it matters during calibration
A tuner can only calibrate what the hardware allows it to.
If boost control varies because the wastegate sticks on every few runs, the calibration ends up compensating for a mechanical fault. That will diminish performance.
Every vehicle calibrated at DSPS is assessed as a complete package. Reliable power comes from reliable hardware first. Only then can the ECU be mapped with confidence, whether it's a dedicated race car, a weekend track build or a high-performance road vehicle.
A healthy wastegate also protects the turbocharger itself. A stable boost means lower stress on components, more predictable exhaust temperatures, and greater confidence when pushing the car hard.
Performance isn't just about producing the highest number on a dyno sheet. It's about producing that same performance every lap, every run and every drive home afterwards.
If your car is due for a remap, anti-lag calibration or a full performance build, the team at DSPS can inspect the complete boost control system before tuning begins. Small mechanical issues are far easier to fix before calibration than after, helping you get the most from every modification with reliable, repeatable performance.
